CAP ALUM 100UF 20% 25V SMD

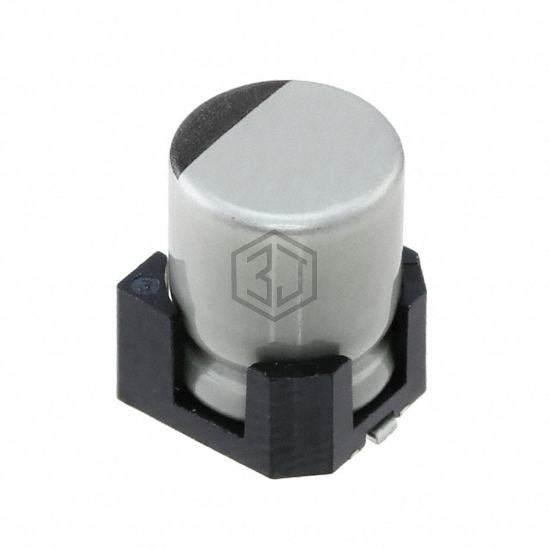

UUE1E101MNS1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,018
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 93.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMHK350ADA101MF80G | United Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 76% | View |
| EDT107M035A9MAA | KEMET | CAP ALUM 100UF 20% 35V SMD | 75% | View |
| EDT107M016S9LAA | KEMET | CAP ALUM 100UF 20% 16V SMD | 75% | View |
| EDT107M016A9LAA | KEMET | CAP ALUM 100UF 20% 16V SMD | 75% | View |
| EEE-TG1C101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 16V SMD | 71% | View |
| EMHB250ADA101MHA0G | United Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 66% | View |
Submit your RFQ for UUE1E101MNS1GS and get a quote within 24 hours.
