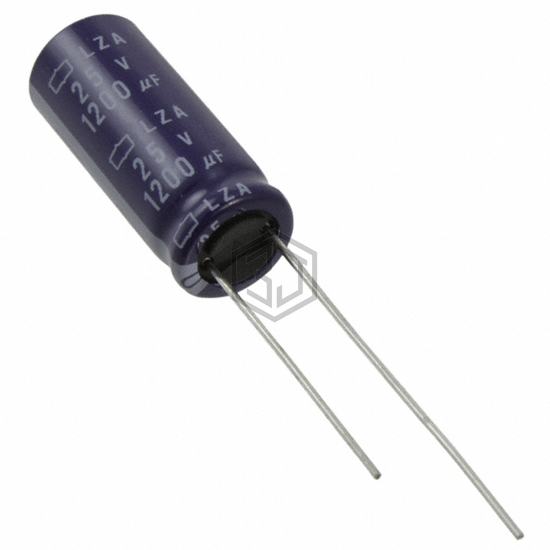

CAP ALUM 1200UF 20% 25V RADIAL
ELZA250ELL122MJ25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,017
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.044 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.74 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1E122MHD6 | Nichicon | CAP ALUM 1200UF 20% 25V RADIAL | 90% | View |
| 860080478021 | Würth Elektronik | CAP ALUM 1200UF 20% 25V RADIAL | 87% | View |
| MAL213650122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V RADIAL | 81% | View |
| EEU-FC1V122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 70% | View |
| EEU-FC1A122SB | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 64% | View |
| ELXV6R3ELL122MJ20S | United Chemi-Con | CAP ALUM 1200UF 20% 6.3V RADIAL | 57% | View |
