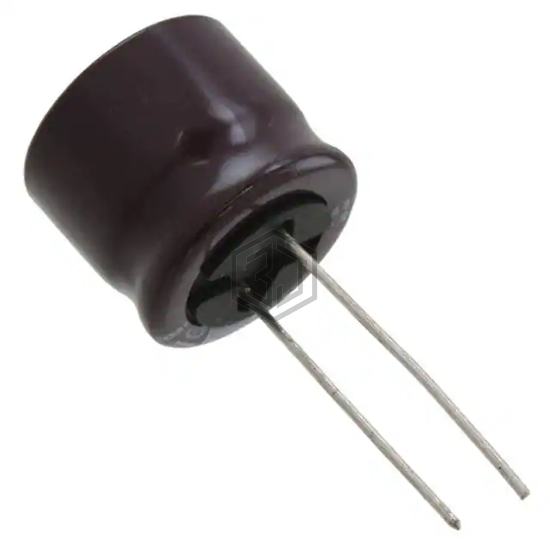

CAP ALUM 1200UF 20% 25V RADIAL
UPM1E122MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,431
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 10 kHz |
| Impedance | 39 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E122MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELZA250ELL122MJ25S | United Chemi-Con | CAP ALUM 1200UF 20% 25V RADIAL | 90% | View |
| 601D128G030JJ3 | Vishay Sprague | CAP ALUM 1200UF 30V AXIAL | 88% | View |
| 860080478021 | Würth Elektronik | CAP ALUM 1200UF 20% 25V RADIAL | 82% | View |
| MAL213650122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V RADIAL | 80% | View |
| EEU-FC1V122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 72% | View |
| EEU-FC1A122SB | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 62% | View |
