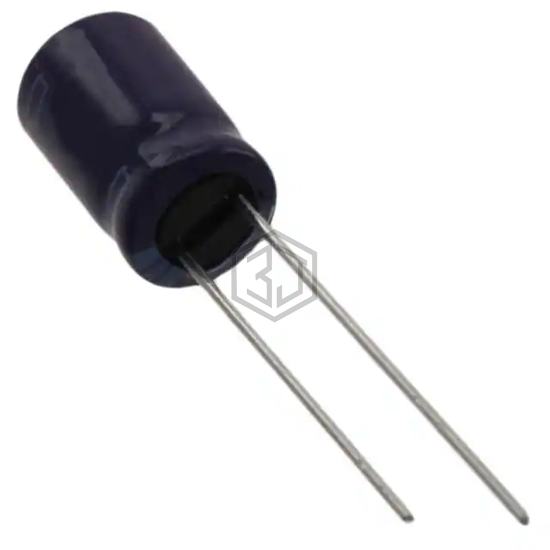

CAP ALUM 560UF 20% 16V RADIAL
ELXZ160ELL561MH20D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 901
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 405 mA @ 120 Hz |
| Ripple Current @ High Frequency | 810 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1A561MPD1TD | Nichicon | CAP ALUM 560UF 20% 10V RADIAL | 78% | View |
| 567KXM6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 6.3V RADIAL | 67% | View |
| EEU-FC1E561SB | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL | 61% | View |
| EEU-FC1E561 | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL | 58% | View |
| MAL213660561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 35V RADIAL | 55% | View |
| ELXV350ELL561MK20S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 54% | View |
Submit your RFQ for ELXZ160ELL561MH20D and get a quote within 24 hours.
