Panasonic Electronic Components
CAP ALUM 560UF 20% 25V RADIAL

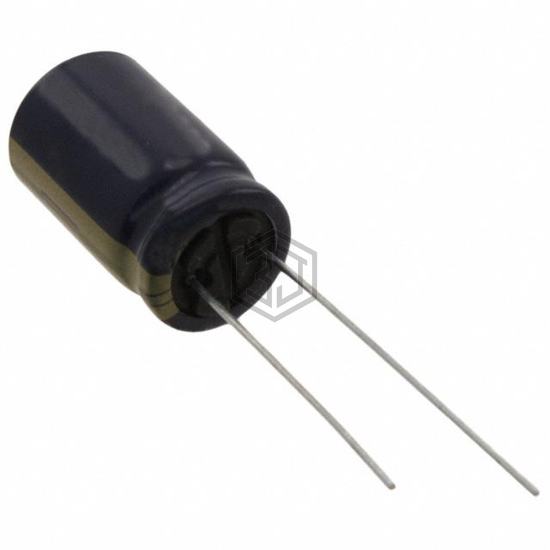

EEU-FC1E561SB is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,460
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 903.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.205 A @ 100 kHz |
| Impedance | 65 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1E561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL | 97% | View |
| EEU-FK1V561S | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL TH | 81% | View |
| ELXV350ETD561MJ30S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 78% | View |
| ELXV350ELL561MK20S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 78% | View |
| EEU-FK1V561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL TH | 75% | View |
| B41858C6567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 50V RADIAL | 67% | View |
