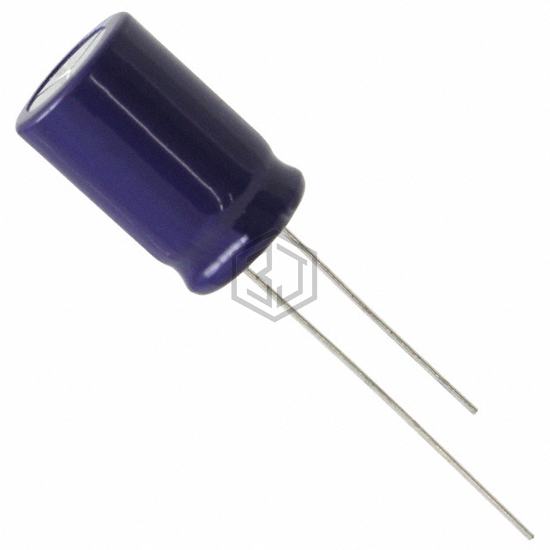

CAP ALUM 560UF 20% 35V RADIAL
ELXY350ELL561MK20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,880
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 670 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.34 A @ 100 kHz |
| Impedance | 46 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E561MPD6 | Nichicon | CAP ALUM 560UF 20% 25V RADIAL | 82% | View |
| EEU-FK1E561LB | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL TH | 82% | View |
| ELXV500ELL561MK30S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 78% | View |
| EEU-FC1H561S | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 63% | View |
| UPA0J561MPD | Nichicon | CAP ALUM 560UF 20% 6.3V RADIAL | 56% | View |
| MLSG561M250EB1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V FLATPACK | 56% | View |
