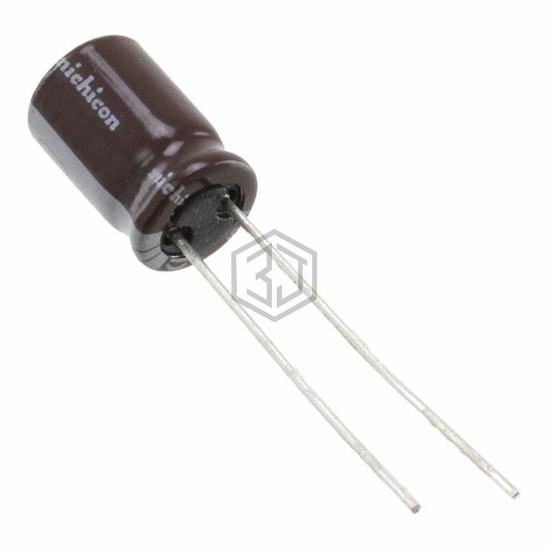

CAP ALUM 560UF 20% 6.3V RADIAL
UPA0J561MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,573
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 472.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 90 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160275023 | Würth Elektronik | CAP ALUM 560UF 20% 10V RADIAL | 61% | View |
| 860160375027 | Würth Elektronik | CAP ALUM 560UF 20% 16V RADIAL | 59% | View |
| ELXY350ELL561MK20S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 56% | View |
| MLSG561M250EB1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V FLATPACK | 56% | View |
| UBX1J561MHL | Nichicon | CAP ALUM 560UF 20% 63V RADIAL | 56% | View |
| ELXZ350ELL561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 54% | View |
