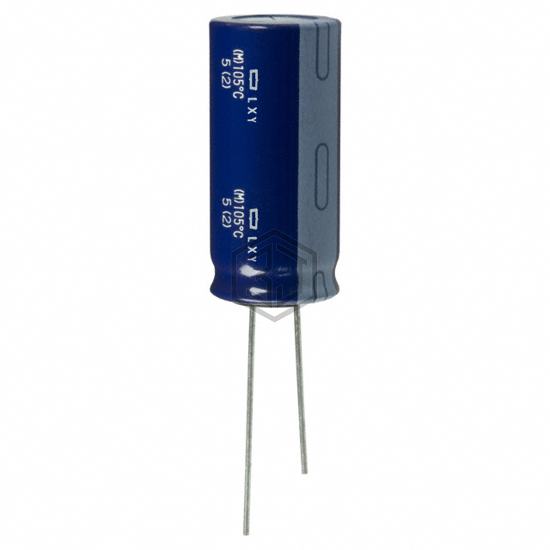

CAP ALUM 4700UF 20% 16V RADIAL
ELXY160ELL472ML35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,897
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.1675 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.55 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225055472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 95% | View |
| MAL225054472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 83% | View |
| 16WXA4700MEFCGC18X20 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 76% | View |
| 16WXA4700MEFC18X20 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 76% | View |
| EEU-FC0J472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 6.3V RADIAL | 76% | View |
| B41858D5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 25V RADIAL | 75% | View |
Submit your RFQ for ELXY160ELL472ML35S and get a quote within 24 hours.
