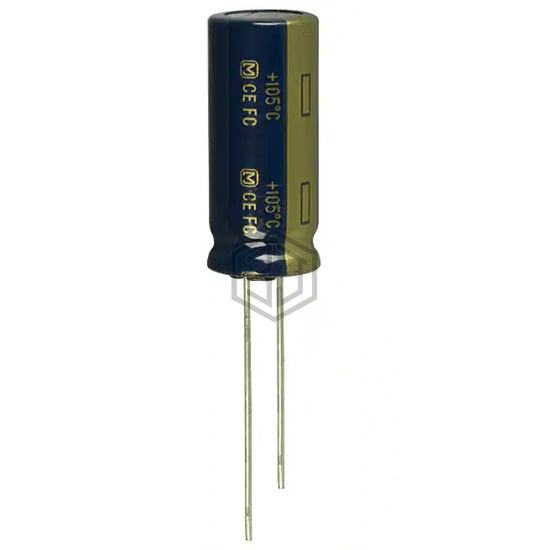

Panasonic Electronic Components
CAP ALUM 4700UF 20% 6.3V RADIAL
EEU-FC0J472 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 133
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.964 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.31 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225054472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 84% | View |
| ELXY160ELL472ML35S | United Chemi-Con | CAP ALUM 4700UF 20% 16V RADIAL | 76% | View |
| EEU-FC1C472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 67% | View |
| EKMQ100ELL472MK25S | United Chemi-Con | CAP ALUM 4700UF 20% 10V RADIAL | 63% | View |
| B41858D5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 25V RADIAL | 61% | View |
| 16WXA4700MEFC18X20 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 60% | View |
Submit your RFQ for EEU-FC0J472 and get a quote within 24 hours.
