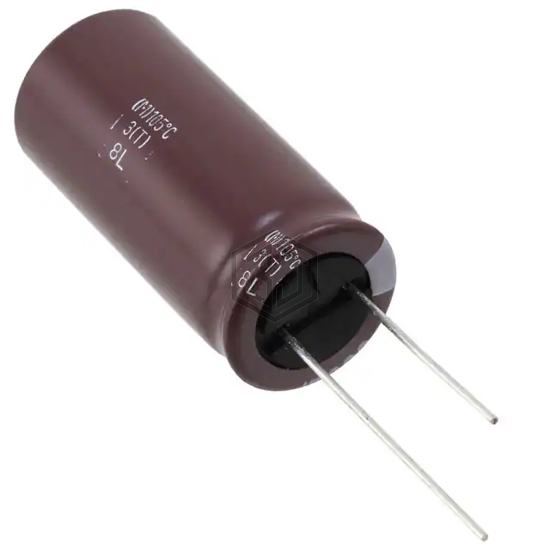

CAP ALUM 1000UF 20% 63V RADIAL
ELXV630ELL102ML40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1000UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.035 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.07 A @ 100 kHz |
| Impedance | 36 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213668102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V RADIAL | 97% | View |
| 63PX1000MEFC16X25 | Rubycon | CAP ALUM 1000UF 20% 63V RADIAL | 88% | View |
| EKMG630EMC102ML25S | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 88% | View |
| ELXY350ELL102MK30S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 79% | View |
| UPW1V102MHD | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 74% | View |
| URZ1H102MHD | Nichicon | CAP ALUM 1000UF 20% 50V RADIAL | 69% | View |
