CAP ALUM 1000UF 20% 50V RADIAL

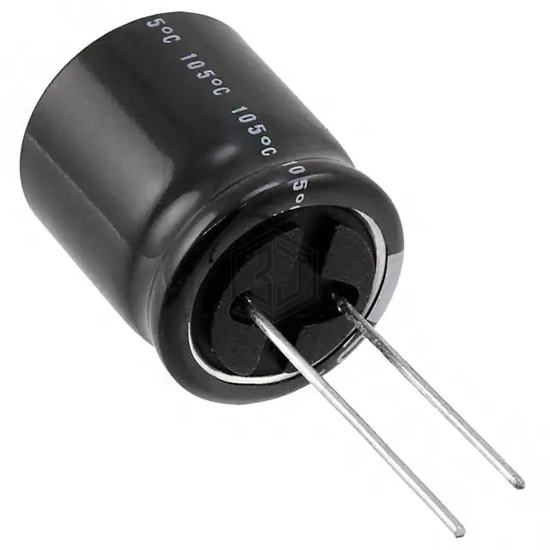

URZ1H102MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,808
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 830 mA @ 120 Hz |
| Ripple Current @ High Frequency | 954.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213668102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V RADIAL | 85% | View |
| EKMG630EMC102ML25S | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 81% | View |
| UPA1A102MPD6 | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 73% | View |
| ELXV630ELL102ML40S | United Chemi-Con | CAP ALUM 1000UF 20% 63V RADIAL | 69% | View |
| UPW1V102MHD | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 58% | View |
| 10WXA1000MEFCT810X9 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 52% | View |
