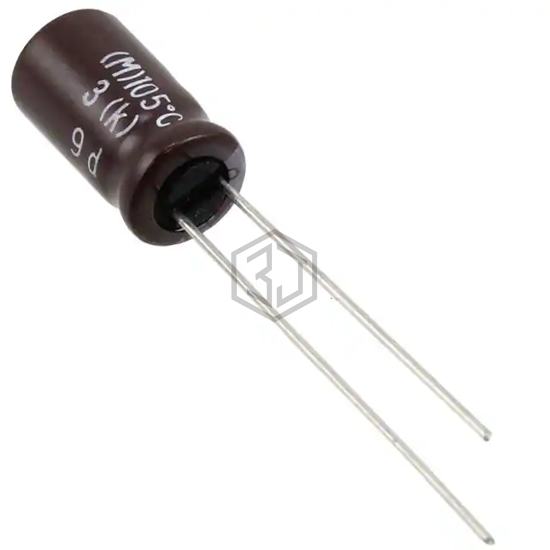

CAP ALUM 120UF 20% 16V RADIAL
ELXV160EC5121MFB5D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 120UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,530
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 140.25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 255 mA @ 100 kHz |
| Impedance | 380 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1C121MGD | Nichicon | CAP ALUM 120UF 20% 16V RADIAL | 94% | View |
| UPV1C121MGD1TD | Nichicon | CAP ALUM 120UF 20% 16V RADIAL | 94% | View |
| ELXY160ETD121MFB5D | United Chemi-Con | CAP ALUM 120UF 20% 16V RADIAL | 92% | View |
| UPW1C121MED1TD | Nichicon | CAP ALUM 120UF 20% 16V RADIAL | 86% | View |
| UPW0J121MDD1TE | Nichicon | CAP ALUM 120UF 20% 6.3V RADIAL | 73% | View |
| 601D127G050FE2 | Vishay Sprague | CAP ALUM 120UF 50V AXIAL | 56% | View |
Submit your RFQ for ELXV160EC5121MFB5D and get a quote within 24 hours.
