CAP ALUM 120UF 20% 16V RADIAL

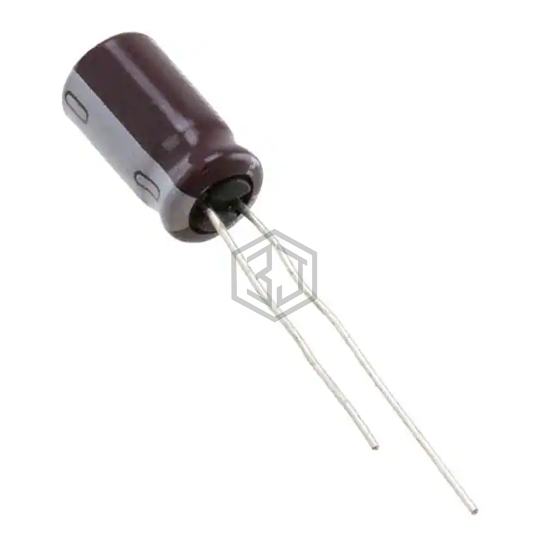

UPW1C121MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 188.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 290 mA @ 100 kHz |
| Impedance | 250 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C121MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV160EC5121MFB5D | United Chemi-Con | CAP ALUM 120UF 20% 16V RADIAL | 86% | View |
| UPV1C121MGD | Nichicon | CAP ALUM 120UF 20% 16V RADIAL | 85% | View |
| ELXY160ETD121MFB5D | United Chemi-Con | CAP ALUM 120UF 20% 16V RADIAL | 83% | View |
| EEU-FC1E121B | Panasonic Electronic Components | CAP ALUM 120UF 20% 25V RADIAL | 75% | View |
| 601D127G050FE2 | Vishay Sprague | CAP ALUM 120UF 50V AXIAL | 56% | View |
| ELXZ500ELL121MJC5S | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for UPW1C121MED1TD and get a quote within 24 hours.
