CAP ALUM 680UF 20% 100V RADIAL

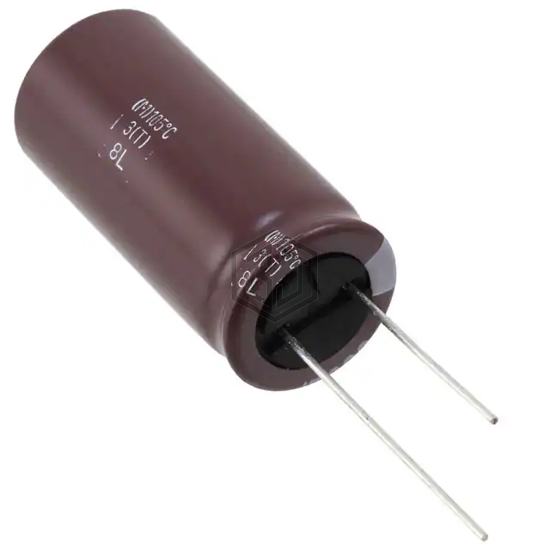

ELXV101ELL681MM40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.185 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.37 A @ 100 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VPR681U075N2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 75V RADIAL | 87% | View |
| RXW681M1JBK-1820S | Surge | CAP ALUM 63V POLAR | 82% | View |
| EEU-FC1V681SB | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V RADIAL | 73% | View |
| 860080678021 | Würth Elektronik | CAP ALUM 680UF 20% 50V RADIAL | 68% | View |
| B41858C7687M8 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 35V RADIAL | 56% | View |
| MAL213665681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 53% | View |
