Cornell Dubilier Electronics (CDE)
CAP ALUM 680UF 75V RADIAL

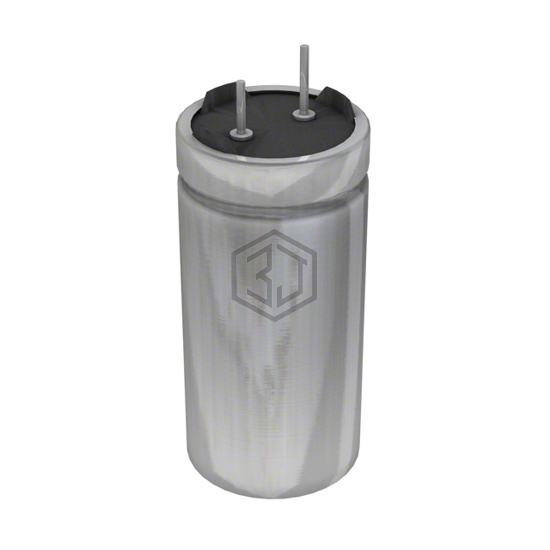

VPR681U075N2C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 680UF 75V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 75 V, package / case Radial, Can.
In Stock: 4,554
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 69mOhm @ 10kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.42 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.402" (10.20mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 2.126" (54.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 63V RADIAL | 89% | View |
| ELXV101ELL681MM40S | United Chemi-Con | CAP ALUM 680UF 20% 100V RADIAL | 87% | View |
| EEU-FC1V681SB | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V RADIAL | 60% | View |
| MAL213630681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 56% | View |
| MAL213665681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 56% | View |
| MAL216065681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for VPR681U075N2C and get a quote within 24 hours.
