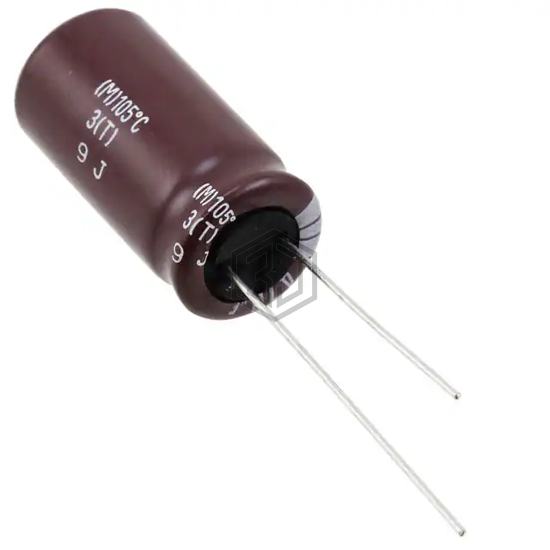

CAP ALUM 2200UF 20% 10V RADIAL
ELXV100ETE222MK25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,533
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215054222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V RADIAL | 93% | View |
| B41858C3228M1 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 10V RADIAL | 87% | View |
| UPA0J222MPD6TD | Nichicon | CAP ALUM 2200UF 20% 6.3V RADIAL | 70% | View |
| 678D228M025FV3D | Vishay Sprague | CAP ALUM 2200UF 20% 25V RADIAL | 68% | View |
| ELXV250EC3222MK40S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 64% | View |
| RXW222M1EBK-1820S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 63% | View |
