CAP ALUM 2200UF 20% 25V RADIAL

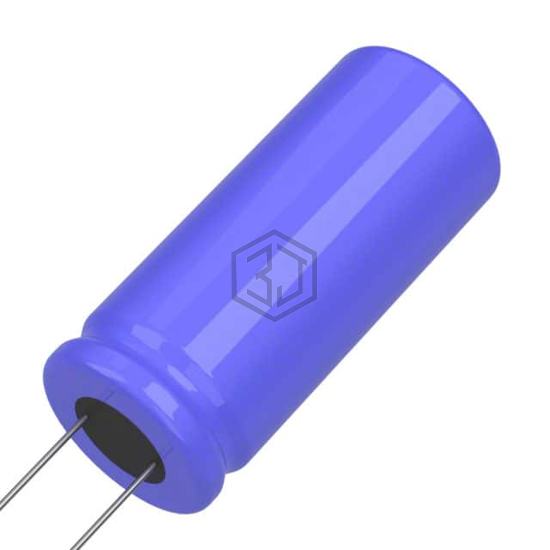

678D228M025FV3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 62mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.554 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.22 A @ 100 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.693" (43.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW222M1EBK-1820S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 97% | View |
| ELXV250EC3222MK40S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 95% | View |
| EEU-FC1E222S | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RADIAL | 92% | View |
| MAL214660222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 83% | View |
| EKMQ101ELL222MP50S | United Chemi-Con | CAP ALUM 2200UF 20% 100V RADIAL | 75% | View |
| MAL211817222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 40V AXIAL | 64% | View |
Submit your RFQ for 678D228M025FV3D and get a quote within 24 hours.
