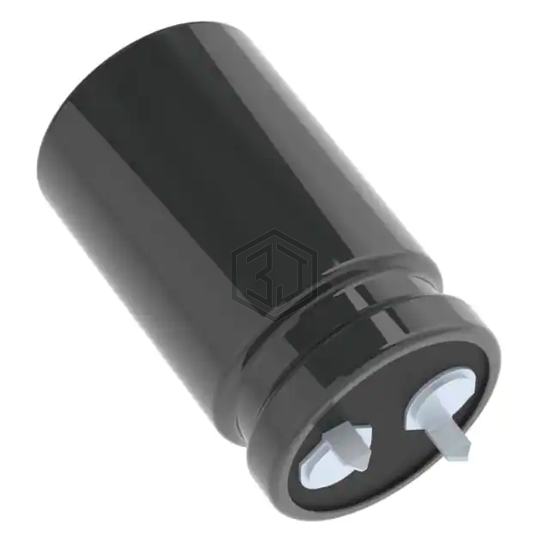

CAP ALUM 270UF 20% 250V SNAP
ELXM251VSN271MP35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 270UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 5,090
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.62 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43644E2277M067 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 250V SNAP | 100% | View |
| 381LQ271M350J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 350V SNAP | 88% | View |
| MAL225983271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 250V SNAP | 84% | View |
| PL2W271MND3030RSY | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 78% | View |
| UPT2G271MRD6 | Nichicon | CAP ALUM 270UF 20% 400V RADIAL | 75% | View |
| EGPD800ELL271MK20H | United Chemi-Con | CAP ALUM 270UF 20% 80V RADIAL | 72% | View |
Submit your RFQ for ELXM251VSN271MP35S and get a quote within 24 hours.
