CAP ALUM 1200UF 20% 80V RADIAL

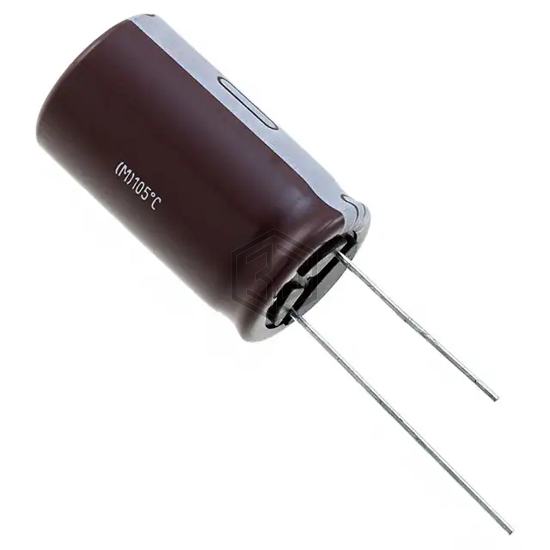

EKZN800ELL122MMN3S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 8,058
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.716 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.86 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXG1200MEFCGC18X25 | Rubycon | CAP ALUM 1200UF 20% 50V RADIAL | 83% | View |
| LGU1K122MELA | Nichicon | CAP ALUM 1200UF 20% 80V SNAP | 81% | View |
| 860080580023 | Würth Elektronik | CAP ALUM 1200UF 20% 35V RADIAL | 72% | View |
| LGG2Z122MELA40 | Nichicon | CAP ALUM 1200UF 20% 180V SNAP | 71% | View |
| EEU-TP1E122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 60% | View |
| MAL224650122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V RADIAL | 60% | View |
