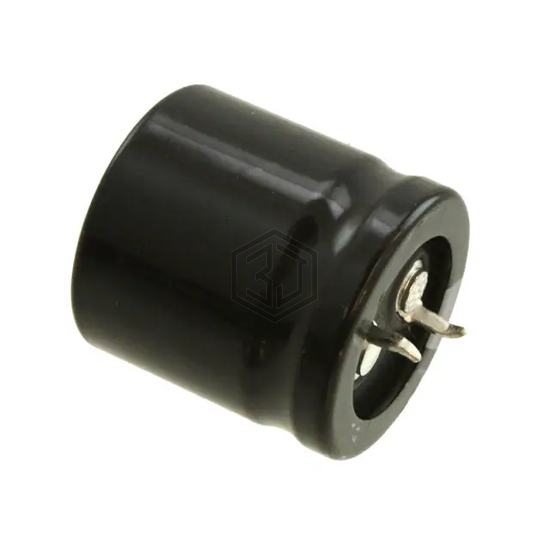

CAP ALUM 1200UF 20% 80V SNAP
LGU1K122MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,096
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.39 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5985 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZN800ELL122MMN3S | United Chemi-Con | CAP ALUM 1200UF 20% 80V RADIAL | 81% | View |
| EEU-TP1E122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 76% | View |
| MAL224650122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 35V RADIAL | 72% | View |
| 604D122G020GJ7 | Vishay Sprague | CAP ALUM 1200UF 20V AXIAL | 64% | View |
| ELXY100ELL122MJ25S | United Chemi-Con | CAP ALUM 1200UF 20% 10V RADIAL | 59% | View |
| EKZE6R3ELL122MH20D | United Chemi-Con | CAP ALUM 1200UF 20% 6.3V RADIAL | 58% | View |
Submit your RFQ for LGU1K122MELA and get a quote within 24 hours.
