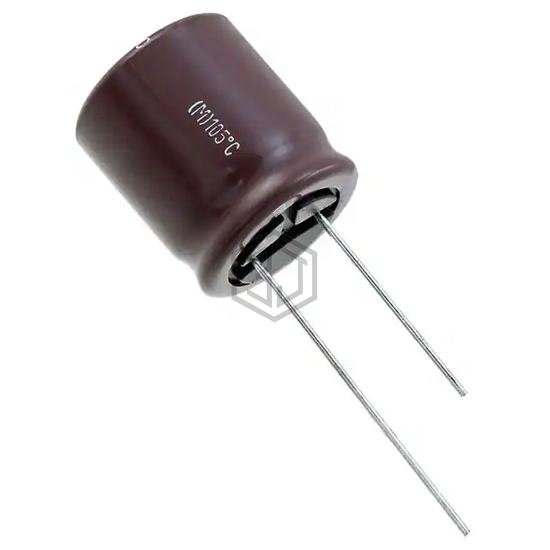

CAP ALUM 820UF 20% 63V RADIAL
EKZN630ELL821MM20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 820UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,676
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.518 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.53 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-630ELL821MM25S | United Chemi-Con | CAP ALUM 820UF 20% 63V RADIAL | 95% | View |
| EKZE500ETS821ML20S | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 89% | View |
| EEU-FC1H821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 50V RADIAL | 83% | View |
| EKMH101VSN821MQ25S | United Chemi-Con | CAP ALUM 820UF 20% 100V SNAP | 72% | View |
| 100MXC820MEFCSN20X35 | Rubycon | CAP ALUM 820UF 20% 100V SNAP | 70% | View |
| LGU2C821MELB | Nichicon | CAP ALUM 820UF 20% 160V SNAP | 67% | View |
