CAP ALUM 560UF 20% 25V RADIAL

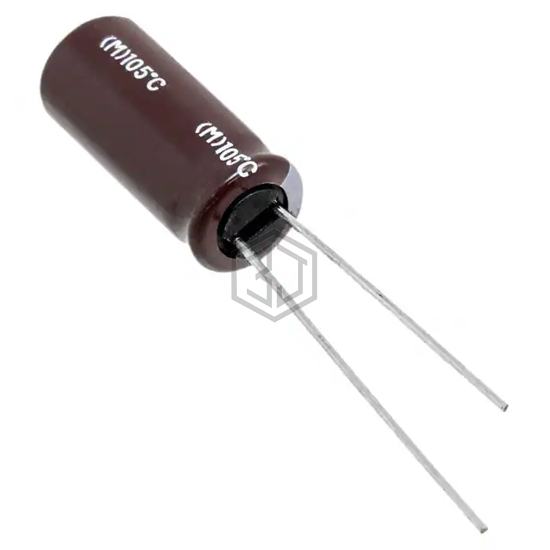

EKZN250ELL561MH20D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,863
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 980 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.96 A @ 100 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 567KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 35V RADIAL | 81% | View |
| ELXY250ELL561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 25V RADIAL | 79% | View |
| 860160578027 | Würth Elektronik | CAP ALUM 560UF 20% 35V RADIAL | 75% | View |
| 860040678012 | Würth Elektronik | CAP ALUM 560UF 20% 50V RADIAL | 73% | View |
| 381LX561M160K012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 160V SNAP | 67% | View |
| LGN2Z561MELA25 | Nichicon | CAP ALUM 560UF 20% 180V SNAP | 65% | View |
Submit your RFQ for EKZN250ELL561MH20D and get a quote within 24 hours.
