Cornell Dubilier Electronics (CDE)

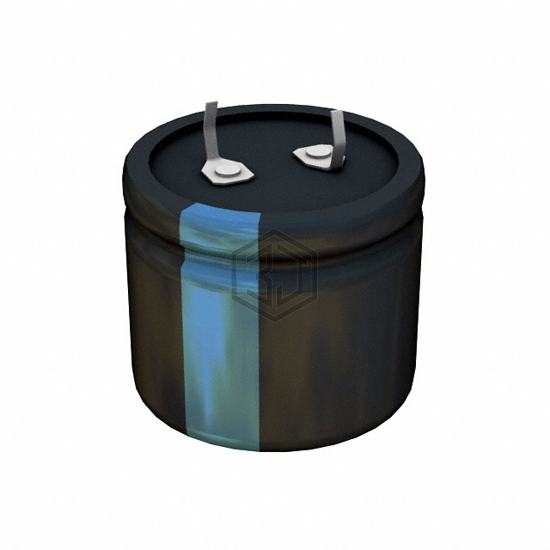

CAP ALUM 560UF 20% 160V SNAP
381LX561M160K012 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 5,472
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGG2Z561MELZ30 | Nichicon | CAP ALUM 560UF 20% 180V SNAP | 95% | View |
| LGN2Z561MELA25 | Nichicon | CAP ALUM 560UF 20% 180V SNAP | 95% | View |
| B43508G2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 81% | View |
| 860040678012 | Würth Elektronik | CAP ALUM 560UF 20% 50V RADIAL | 77% | View |
| B43544E2567M067 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 76% | View |
| B43544F2567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 72% | View |
Submit your RFQ for 381LX561M160K012 and get a quote within 24 hours.
