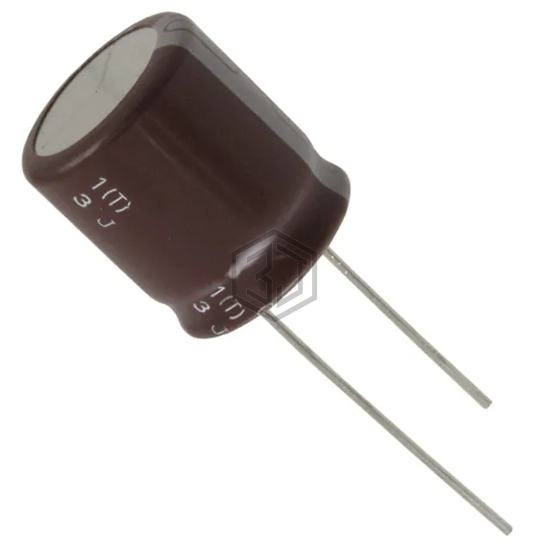

CAP ALUM 470UF 20% 80V RADIAL
EKZE800ELL471MM20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 9,465
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 477CKH063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 63V RADIAL | 84% | View |
| EKY-500ELL471MJ30S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 82% | View |
| EEU-FC2A471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 100V RADIAL | 75% | View |
| 25YXS470MEFC10X12.5 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 71% | View |
| MAL212049471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 100V T/H | 64% | View |
| LGJ2Z471MELC | Nichicon | CAP ALUM 470UF 20% 180V SNAP | 57% | View |
Submit your RFQ for EKZE800ELL471MM20S and get a quote within 24 hours.
