Panasonic Electronic Components

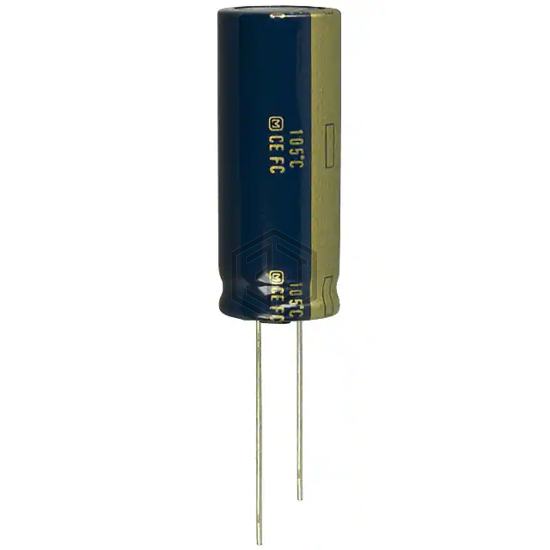

CAP ALUM 470UF 20% 100V RADIAL
EEU-FC2A471 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,679
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.44 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.92 A @ 100 kHz |
| Impedance | 47 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858H8477M009 | EPCOS - TDK Electronics | SINGLE-ENDED 470UF 63V | 100% | View |
| UPJ1K471MHD6 | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 76% | View |
| ELXY630ETS471ML25S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 67% | View |
| MAL215098475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 62% | View |
| 672D477H015DT5J | Vishay Sprague | CAP ALUM 470UF 15V RADIAL | 56% | View |
| EEU-FC1E471LB | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 51% | View |
Submit your RFQ for EEU-FC2A471 and get a quote within 24 hours.
