CAP ALUM 820UF 20% 50V RADIAL

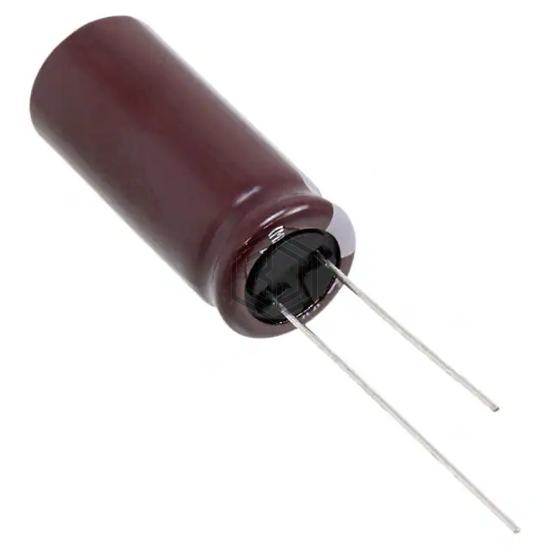

EKYB500ELL821MK30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 820UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,663
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.47 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.45 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63ZLJ820M12.5X30 | Rubycon | CAP ALUM 820UF 20% 63V RADIAL | 81% | View |
| 381LX821M160K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 160V SNAP | 68% | View |
| LGU2Z821MELB | Nichicon | CAP ALUM 820UF 20% 180V SNAP | 66% | View |
| LGY2A821MELA25 | Nichicon | CAP ALUM 820UF 20% 100V SNAP | 64% | View |
| 250MXC820MEFCSN30X40 | Rubycon | CAP ALUM 820UF 20% 250V SNAP | 63% | View |
| LGU2E821MELC | Nichicon | CAP ALUM 820UF 20% 250V SNAP | 60% | View |
Submit your RFQ for EKYB500ELL821MK30S and get a quote within 24 hours.
