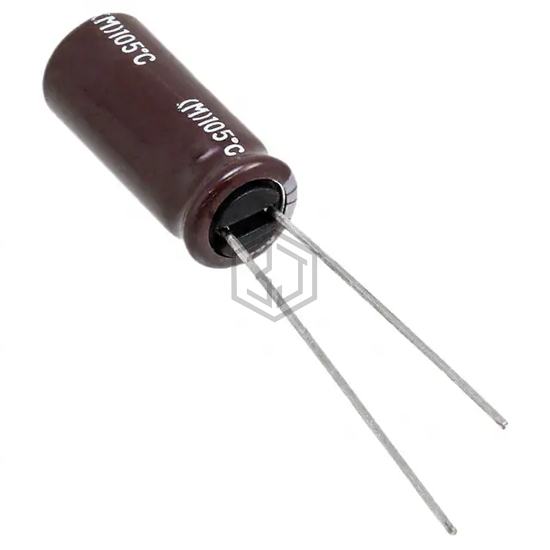

CAP ALUM 330UF 20% 35V RADIAL
EKYB350ELL331MH20D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,991
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 605 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.21 A @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-350ELL331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 100% | View |
| UBT1V331MPD1TD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 87% | View |
| EKYB630ELL331MJ25S | United Chemi-Con | CAP ALUM 330UF 20% 63V RADIAL | 71% | View |
| EKY-101ELL331ML25S | United Chemi-Con | CAP ALUM 330UF 20% 100V RADIAL | 62% | View |
| 50ZLH330MEFC10X23 | Rubycon | CAP ALUM 330UF 20% 50V RADIAL | 61% | View |
| LGU2D331MELY | Nichicon | CAP ALUM 330UF 20% 200V SNAP | 53% | View |
