CAP ALUM 330UF 20% 200V SNAP

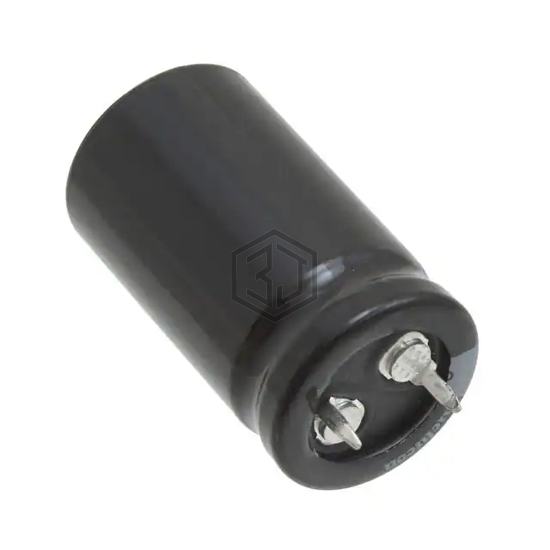

LGU2D331MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 3,034
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGR2D331MELA25 | Nichicon | CAP ALUM 330UF 20% 200V SNAP | 100% | View |
| 160MXC330MEFC20X30 | Rubycon | CAP ALUM 330UF 20% 160V SNAP | 93% | View |
| 50ZLH330MEFC10X23 | Rubycon | CAP ALUM 330UF 20% 50V RADIAL | 74% | View |
| EKY-101ELL331ML25S | United Chemi-Con | CAP ALUM 330UF 20% 100V RADIAL | 69% | View |
| EKYB630ELL331MJ25S | United Chemi-Con | CAP ALUM 330UF 20% 63V RADIAL | 65% | View |
| 678D337K063EK5D | Vishay Sprague | CAP ALUM 330UF 63V RADIAL | 56% | View |
