CAP ALUM 470UF 20% 80V RADIAL

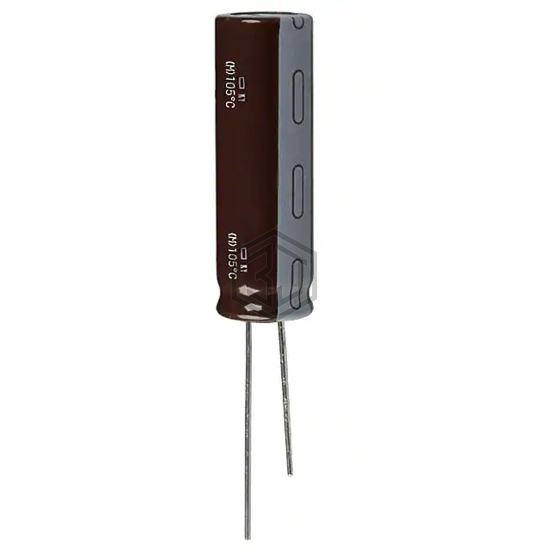

EKY-800EC5471MK35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 2,504
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz |
| Impedance | 36 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZE101ELL471MM25S | United Chemi-Con | CAP ALUM 470UF 20% 100V RADIAL | 92% | View |
| 511D477M075EN4D | Vishay Sprague | CAP ALUM 470UF 20% 75V RADIAL | 76% | View |
| LGU2C471MELY | Nichicon | CAP ALUM 470UF 20% 160V SNAP | 63% | View |
| B41858C6477M4 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 61% | View |
| MAL214091473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 59% | View |
| MAL226036471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for EKY-800EC5471MK35S and get a quote within 24 hours.
