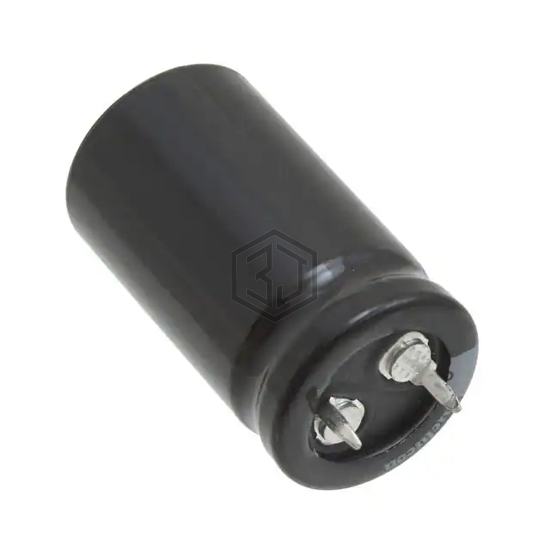

CAP ALUM 470UF 20% 160V SNAP
LGU2C471MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 2,492
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.34 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.01 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504F2477M80 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 200V SNAP | 87% | View |
| 511D477M075EN4D | Vishay Sprague | CAP ALUM 470UF 20% 75V RADIAL | 73% | View |
| EKZE101ELL471MM25S | United Chemi-Con | CAP ALUM 470UF 20% 100V RADIAL | 72% | View |
| EKY-800EC5471MK35S | United Chemi-Con | CAP ALUM 470UF 20% 80V RADIAL | 63% | View |
| ED1V471MNN1020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 59% | View |
| B41858C6477M4 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for LGU2C471MELY and get a quote within 24 hours.
