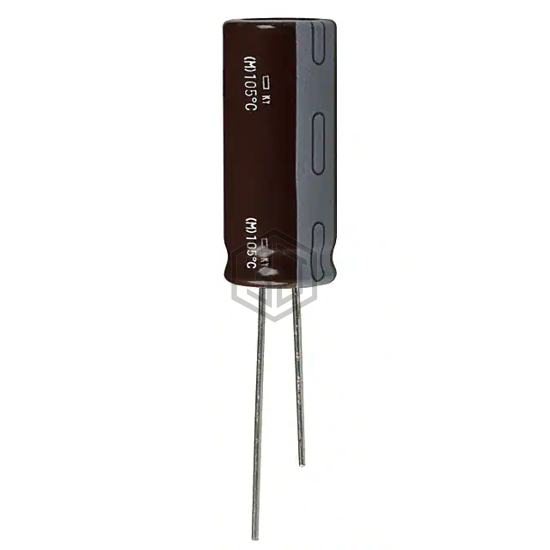

CAP ALUM 4700UF 20% 6.3V RADIAL
EKY-6R3ELL472MK30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 9,920
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2525 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.65 A @ 100 kHz |
| Impedance | 24 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A472L | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RADIAL | 84% | View |
| EKMQ630ELL472MP50S | United Chemi-Con | CAP ALUM 4700UF 20% 63V RADIAL | 77% | View |
| EEU-FR1A472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RADIAL | 76% | View |
| UHE1C472MHD6TN | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 73% | View |
| 25YXF4700MEFCGC18X35.5 | Rubycon | CAP ALUM 4700UF 20% 25V RADIAL | 72% | View |
| MAL225652472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 80V SNAP | 66% | View |
