Panasonic Electronic Components

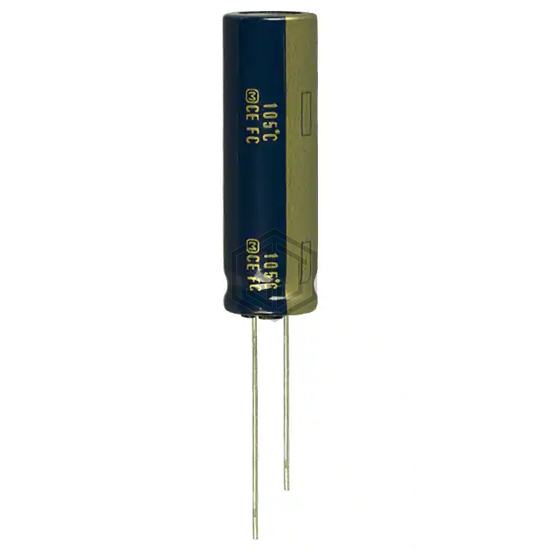

CAP ALUM 4700UF 20% 10V RADIAL
EEU-FC1A472L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 19,430
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.257 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.655 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160278044 | Würth Elektronik | CAP ALUM 4700UF 20% 10V RADIAL | 81% | View |
| MAL224635472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 80% | View |
| EKMQ630ELL472MP50S | United Chemi-Con | CAP ALUM 4700UF 20% 63V RADIAL | 77% | View |
| EKMQ500ELL472MN40S | United Chemi-Con | CAP ALUM 4700UF 20% 50V RADIAL | 73% | View |
| EKMQ350ELL472MLP1S | United Chemi-Con | CAP ALUM 4700UF 20% 35V RADIAL | 66% | View |
| 478RZM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 16V RADIAL | 52% | View |
