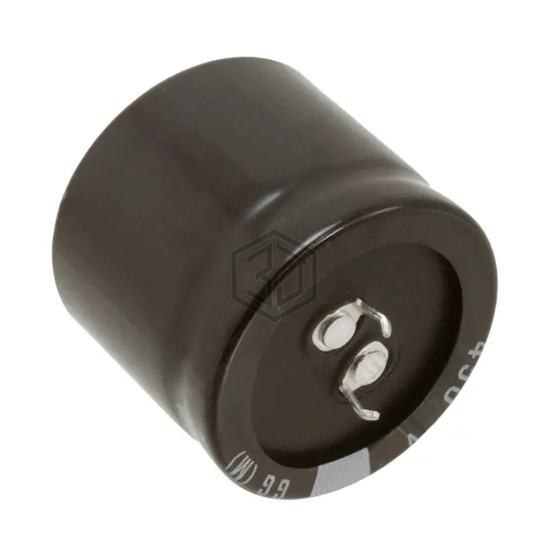

CAP ALUM 1800UF 20% 160V SNAP
LGG2C182MELC30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 1,024
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.825 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504F2188M67 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 200V SNAP | 77% | View |
| EKY-500ELL182ML40S | United Chemi-Con | CAP ALUM 1800UF 20% 50V RADIAL | 75% | View |
| EGPA630ELL182MM40S | United Chemi-Con | CAP ALUM 1800UF 20% 63V RADIAL | 68% | View |
| B41896C6188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 50V RADIAL | 68% | View |
| EEU-FC1V182SB | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 63% | View |
| 25YXH1800MEFCGC16X20 | Rubycon | CAP ALUM 1800UF 20% 25V RADIAL | 57% | View |
Submit your RFQ for LGG2C182MELC30 and get a quote within 24 hours.
