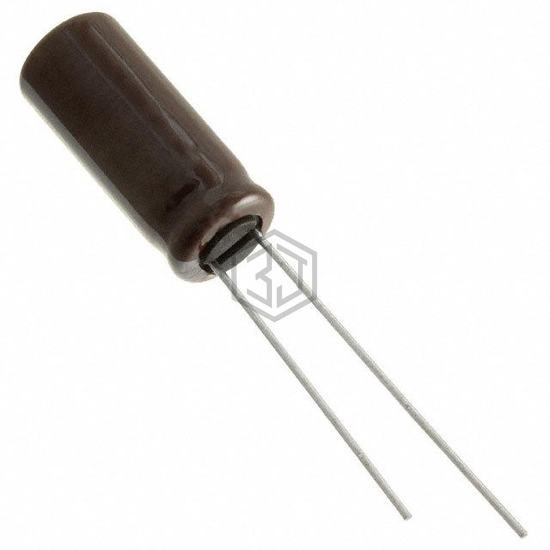

CAP ALUM 470UF 20% 25V RADIAL
EKY-250ELL471MH20D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,197
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 525 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 69 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EKY-250ELL471MH20D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E471MPD6TD | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 90% | View |
| UBW1C471MPD | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 83% | View |
| 25ZLQ470MEFC8X16 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 79% | View |
| MAL226060471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 74% | View |
| 16RX30470M8X16 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 71% | View |
| 50WXA470MEFC12.5X16 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 67% | View |
Submit your RFQ for EKY-250ELL471MH20D and get a quote within 24 hours.
