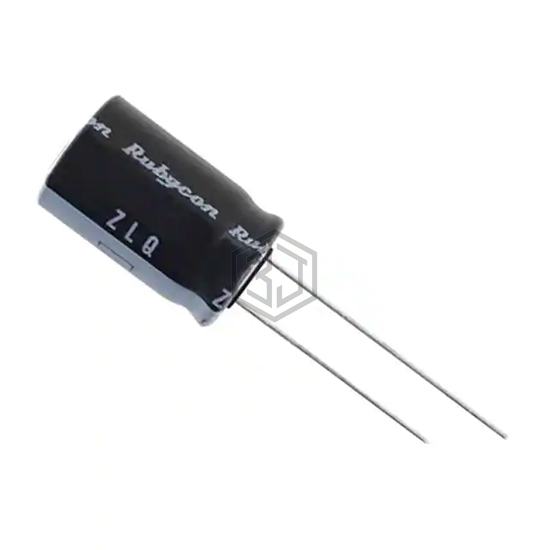

CAP ALUM 470UF 20% 25V RADIAL
25ZLQ470MEFC8X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,764
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 764.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.39 A @ 100 kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KY35VB471M10X20LL | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 87% | View |
| 16RX30470M8X16 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 71% | View |
| 35ZLG470MEFCG412.5X16 | Rubycon | CAP ALUM 470UF 20% 35V RADIAL | 63% | View |
| RZW471M1CBK-1012S | SURGE | CAP ALUM 470UF 20% 16V RADIAL | 60% | View |
| LGR2D471MELB30 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 55% | View |
| 50WXA470MEFC12.5X16 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 55% | View |
Submit your RFQ for 25ZLQ470MEFC8X16 and get a quote within 24 hours.
