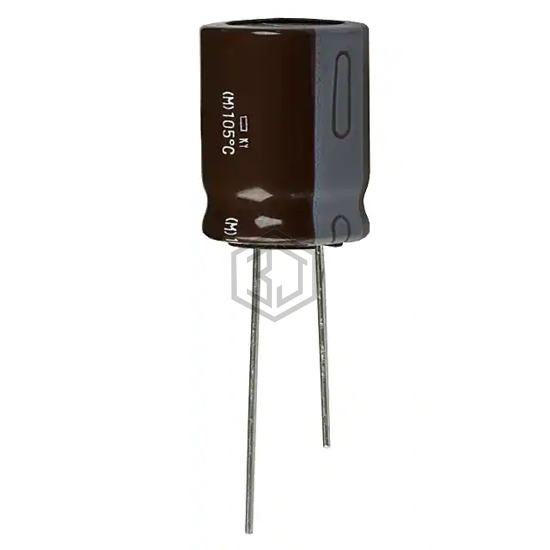

CAP ALUM 1800UF 20% 25V RADIAL
EKY-250ELL182ML20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,216
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.518 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.53 A @ 100 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LXZ25VB182M12X30LL | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 95% | View |
| EEU-FK1V182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RAD TH | 85% | View |
| B41890A4188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 16V RADIAL | 77% | View |
| LGU1K182MELA | Nichicon | CAP ALUM 1800UF 20% 80V SNAP | 70% | View |
| 381LX182M050H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 50V SNAP | 69% | View |
| EKZN800ELL182MM40S | United Chemi-Con | CAP ALUM 1800UF 20% 80V RADIAL | 59% | View |
Submit your RFQ for EKY-250ELL182ML20S and get a quote within 24 hours.
