CAP ALUM 1800UF 20% 80V SNAP

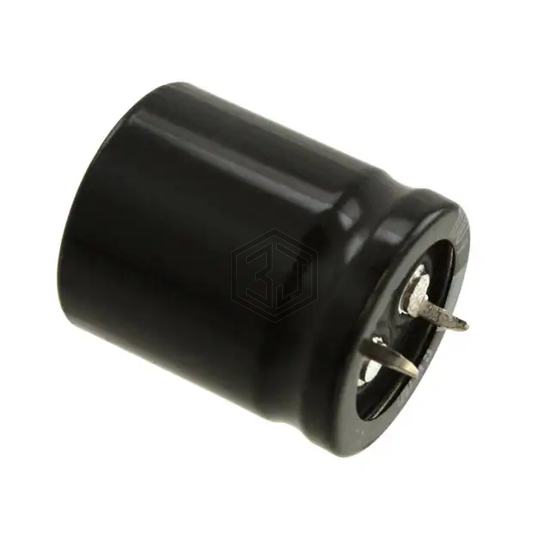

LGU1K182MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 1,913
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.86 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.139 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX182M080K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 80V SNAP | 100% | View |
| EKZN800ELL182MM40S | United Chemi-Con | CAP ALUM 1800UF 20% 80V RADIAL | 81% | View |
| EEU-FK1V182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RAD TH | 77% | View |
| 381LX182M050H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 50V SNAP | 75% | View |
| EKY-250ELL182ML20S | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 70% | View |
| B41890A4188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 16V RADIAL | 69% | View |
