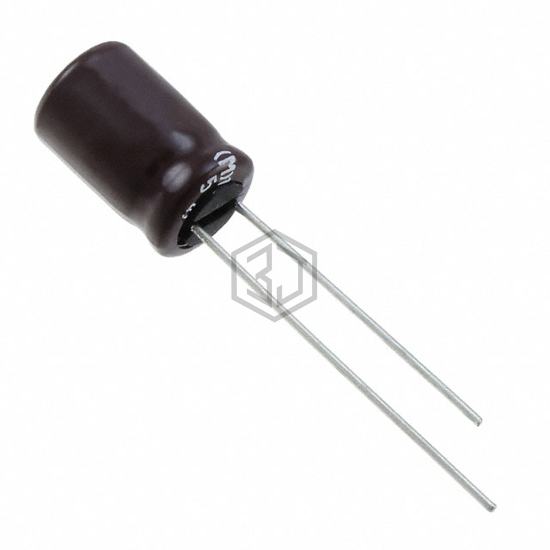

CAP ALUM 39UF 20% 100V RADIAL
EKY-101EC5390MH15D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 39UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,163
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 250 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EKY-101EC5390MH15D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXH39MEFC8X16 | Rubycon | CAP ALUM 39UF 20% 100V RADIAL TH | 91% | View |
| EKZN630ELL390MF11D | United Chemi-Con | CAP ALUM 39UF 20% 63V RADIAL | 85% | View |
| 860080573002 | Würth Elektronik | CAP ALUM 39UF 20% 35V RADIAL | 60% | View |
| UCY2D390MPD1TD | Nichicon | CAP ALUM 39UF 20% 200V RADIAL | 56% | View |
| UCY2E390MPD | Nichicon | CAP ALUM 39UF 20% 250V RADIAL | 53% | View |
| 400TXW39MEFR10X40 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL TH | 53% | View |
Submit your RFQ for EKY-101EC5390MH15D and get a quote within 24 hours.
