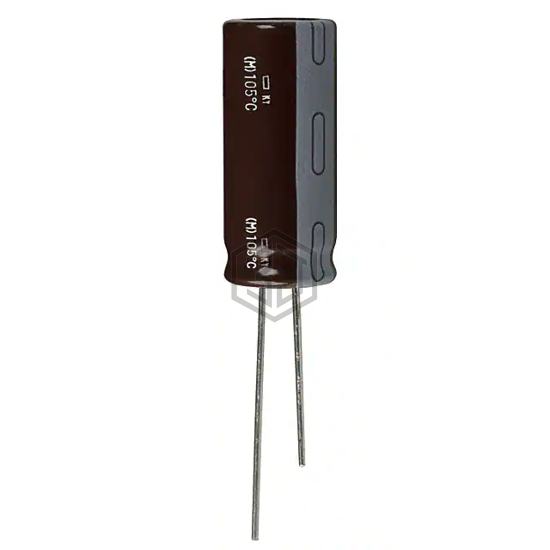

CAP ALUM 3900UF 20% 10V RADIAL
EKY-100ELL392MK30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.9875 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.65 A @ 100 kHz |
| Impedance | 24 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHV1A392MHD1TO | Nichicon | CAP ALUM 3900UF 20% 10V RADIAL | 86% | View |
| ELXY160ELL392ML30S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 82% | View |
| EEU-FM0J392B | Panasonic Electronic Components | CAP ALUM 3900UF 20% 6.3V RADIAL | 73% | View |
| LGU1J392MELB | Nichicon | CAP ALUM 3900UF 20% 63V SNAP | 71% | View |
| B41252B7398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 35V SNAP | 70% | View |
| 381LX392M050J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 50V SNAP | 56% | View |
Submit your RFQ for EKY-100ELL392MK30S and get a quote within 24 hours.
