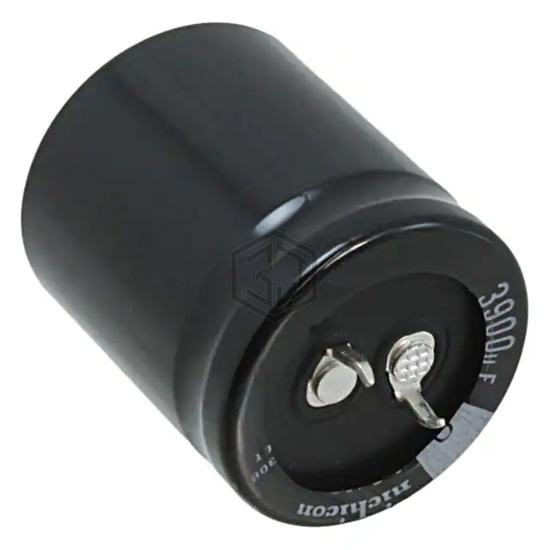

CAP ALUM 3900UF 20% 63V SNAP
LGU1J392MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 1,590
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9325 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FM0J392B | Panasonic Electronic Components | CAP ALUM 3900UF 20% 6.3V RADIAL | 77% | View |
| EEU-FC1E392L | Panasonic Electronic Components | CAP ALUM 3900UF 20% 25V RADIAL | 76% | View |
| EKY-100ELL392MK30S | United Chemi-Con | CAP ALUM 3900UF 20% 10V RADIAL | 71% | View |
| B41252B7398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 35V SNAP | 66% | View |
| ELXY160ELL392ML30S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 65% | View |
| MAL213635392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 57% | View |
Submit your RFQ for LGU1J392MELB and get a quote within 24 hours.
