CAP ALUM 82UF 20% 450V SNAP

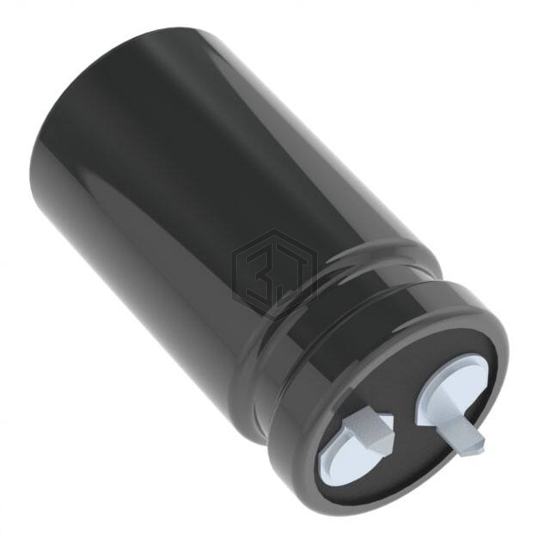

EKMM451VSN820MN35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 82UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 2,449
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 4.043Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 915.2 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400QXW82MEFR12.5X40 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 95% | View |
| 400BXW82MEFR12.5X40 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 82% | View |
| EKXJ451ELL820ML40S | United Chemi-Con | CAP ALUM 82UF 20% 450V RADIAL | 79% | View |
| EKXJ351ELL820MK40S | United Chemi-Con | CAP ALUM 82UF 20% 350V RADIAL | 78% | View |
| UCY2D820MHD9TO | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 71% | View |
| EKY-101ETD820MJ20S | United Chemi-Con | CAP ALUM 82UF 20% 100V RADIAL | 59% | View |
Submit your RFQ for EKMM451VSN820MN35S and get a quote within 24 hours.
