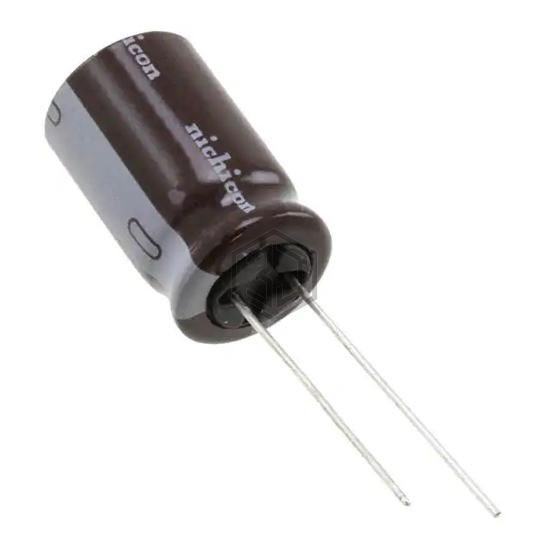

CAP ALUM 82UF 20% 200V RADIAL
UCY2D820MHD9TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,732
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 645 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.29 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF201ELL820MJ40S | United Chemi-Con | CAP ALUM 82UF 20% 200V RADIAL TH | 99% | View |
| EKXJ351ELL820MK40S | United Chemi-Con | CAP ALUM 82UF 20% 350V RADIAL | 77% | View |
| 400LXW82MEFR16X25 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 76% | View |
| EKXG401ELL820MM25S | United Chemi-Con | CAP ALUM 82UF 20% 400V RADIAL | 74% | View |
| EKXG401ETD820MM25S | United Chemi-Con | CAP ALUM 82UF 20% 400V RADIAL | 74% | View |
| 400BXW82MEFR12.5X40 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 73% | View |
Submit your RFQ for UCY2D820MHD9TO and get a quote within 24 hours.
