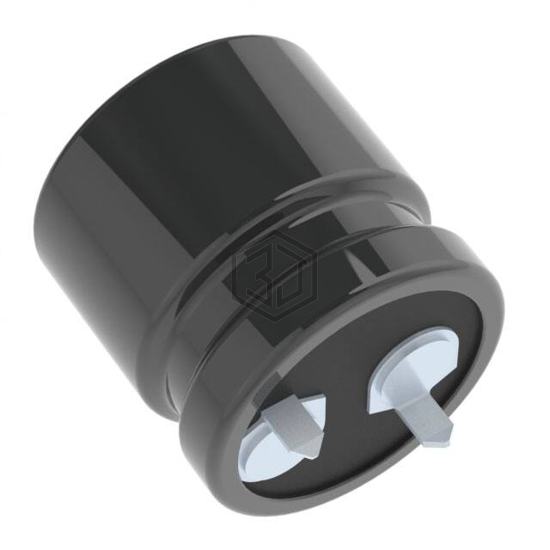

CAP ALUM 47UF 20% 400V SNAP
EKMM401VNN470MP20U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 8,262
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 5.29Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | - |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 529.1 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LAKW6470MELZ25 | Nichicon | CAP ALUM 47UF 20% 420V SNAP | 91% | View |
| 450WXA47MEFCGC18X25 | Rubycon | CAP ALUM 47UF 20% 450V RADIAL | 83% | View |
| MAL215233479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 250V RADIAL | 75% | View |
| UBX2A470MPL | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 71% | View |
| EEU-TA1H470S | Panasonic Electronic Components | CAP ALUM 47UF 20% 50V RADIAL | 68% | View |
| 200YXF47MEFCG412.5X25 | Rubycon | CAP ALUM 47UF 20% 200V RADIAL | 66% | View |
Submit your RFQ for EKMM401VNN470MP20U and get a quote within 24 hours.
