CAP ALUM 47UF 20% 100V RADIAL

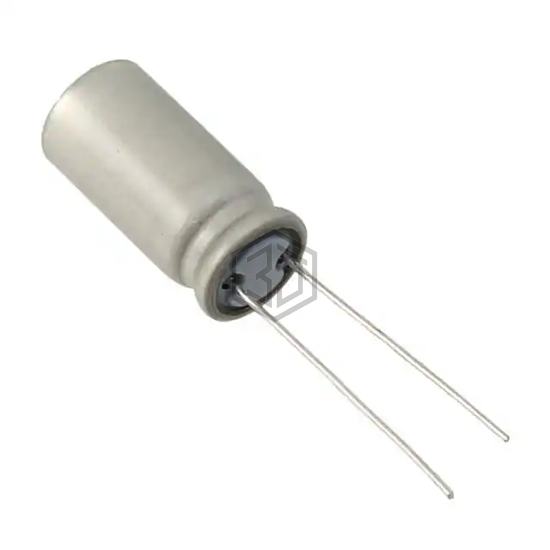

UBX2A470MPL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | 640 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UBX2A470MPL and get a quote within 24 hours.
