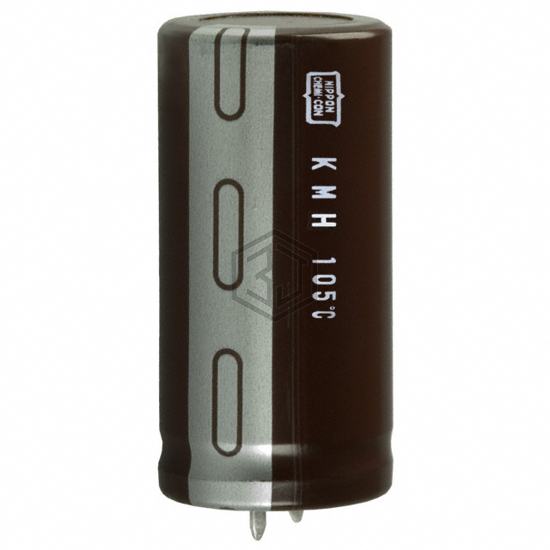

CAP ALUM 330UF 20% 450V SNAP
EKMH451VRD331MA40T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 1,704
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 753mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9734 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
EKMH451VRD331MA40T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMR451VSN331MR35S | United Chemi-Con | CAP ALUM 330UF 20% 450V SNAP | 98% | View |
| LGX2W331MELB45 | Nichicon | CAP ALUM 330UF 20% 450V SNAP | 96% | View |
| EKMW401VSN331MR25S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 94% | View |
| LGM2W331MELA40 | Nichicon | CAP ALUM 330UF 20% 450V SNAP | 80% | View |
| B43504C2337M62 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 71% | View |
| MAL212018331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V AXIAL | 64% | View |
