CAP ALUM 330UF 20% 450V SNAP

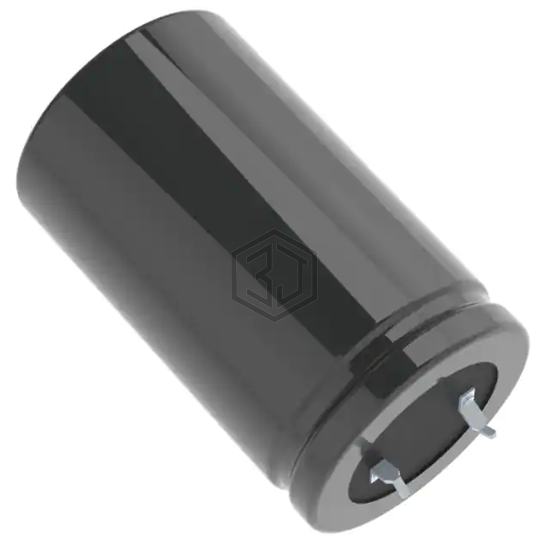

LGM2W331MELA40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 6,945
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.673" (42.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMR451VSN331MR35S | United Chemi-Con | CAP ALUM 330UF 20% 450V SNAP | 79% | View |
| LGX2W331MELB45 | Nichicon | CAP ALUM 330UF 20% 450V SNAP | 77% | View |
| EKMW401VSN331MR25S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 73% | View |
| 50YXH330MEFCT810X23 | Rubycon | CAP ALUM 330UF 20% 50V RADIAL | 70% | View |
| ELXZ630ELL331MJ30S | United Chemi-Con | CAP ALUM 330UF 20% 63V RADIAL | 67% | View |
| 381LR331M250H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 250V SNAP | 62% | View |
