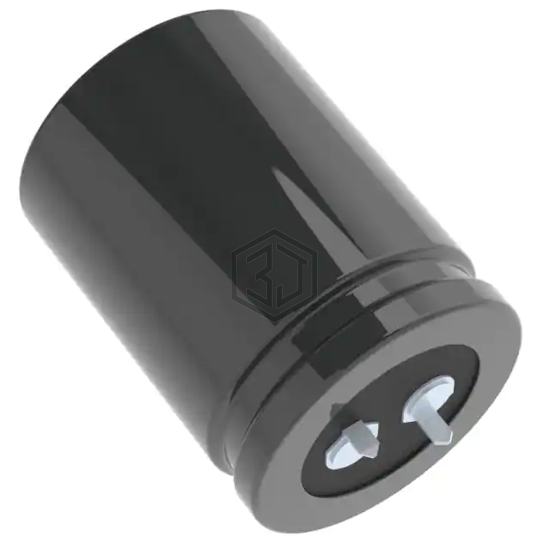

CAP ALUM 560UF 20% 315V SNAP
EKMH3B1VNN561MA45U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 7,368
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | - |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.717 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 350VXH560MEFC35X40 | Rubycon | CAP ALUM 560UF 20% 350V SNAP | 92% | View |
| 381LQ561M315A022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 315V SNAP | 88% | View |
| 400VXH560MEFC30X45 | Rubycon | CAP ALUM 560UF 20% 400V SNAP | 88% | View |
| MAL215953561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 250V SNAP | 87% | View |
| EKMW401VSN561MA30S | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 87% | View |
| B43642F2567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 86% | View |
