Cornell Dubilier Electronics (CDE)

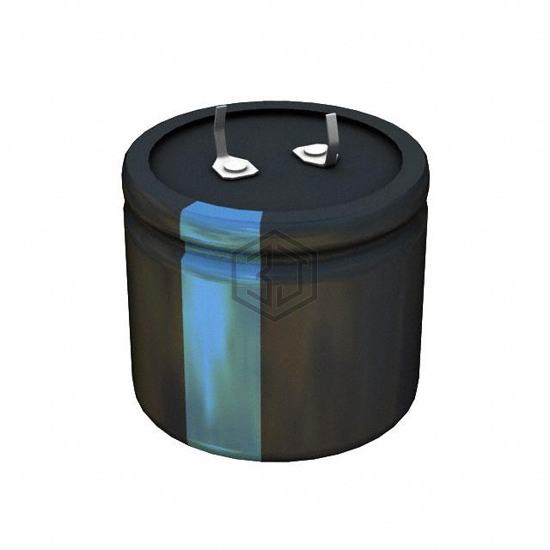

CAP ALUM 560UF 20% 315V SNAP
381LQ561M315A022 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 3,996
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 296mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43642F2567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 87% | View |
| B43508A2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 81% | View |
| LGJ2C561MELC | Nichicon | CAP ALUM 560UF 20% 160V SNAP | 78% | View |
| B43252D1567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 160V SNAP | 71% | View |
| EK1V561MSD1025 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 70% | View |
| B41866C8567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 63V RADIAL | 59% | View |
Submit your RFQ for 381LQ561M315A022 and get a quote within 24 hours.
