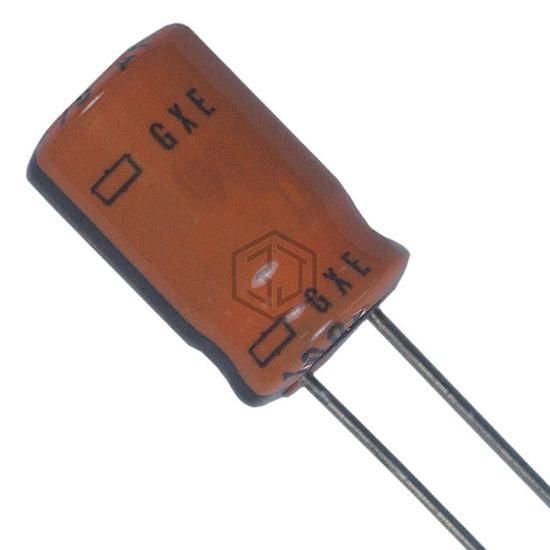

CAP ALUM 4.7UF 20% 350V RADIAL
EGXE351ELL4R7MJ20S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4.7UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 6,922
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -25°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 53 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT2W4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 450V RADIAL | 88% | View |
| EGXE451ELL4R7MJ25S | United Chemi-Con | CAP ALUM 4.7UF 20% 450V RADIAL | 88% | View |
| UBX2V4R7MPL | Nichicon | CAP ALUM 4.7UF 20% 350V RADIAL | 82% | View |
| UBT1H4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 71% | View |
| 100RX304.7M8X11.5 | Rubycon | CAP ALUM 4.7UF 20% 100V RADIAL | 64% | View |
| 100RX304.7MT78X11.5 | Rubycon | CAP ALUM 4.7UF 20% 100V RADIAL | 64% | View |
Submit your RFQ for EGXE351ELL4R7MJ20S and get a quote within 24 hours.
