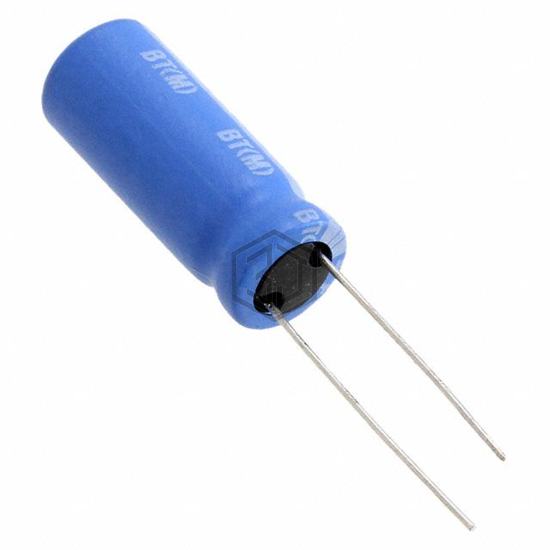

CAP ALUM 4.7UF 20% 450V RADIAL
UBT2W4R7MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 3,226
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -25°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 58 mA @ 120 Hz |
| Ripple Current @ High Frequency | 104.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXE451ELL4R7MJ25S | United Chemi-Con | CAP ALUM 4.7UF 20% 450V RADIAL | 100% | View |
| EGXE351ELL4R7MJ20S | United Chemi-Con | CAP ALUM 4.7UF 20% 350V RADIAL | 88% | View |
| UBX2G4R7MPL1TD | Nichicon | CAP ALUM 4.7UF 20% 400V RADIAL | 79% | View |
| UBT1H4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 67% | View |
| UBT1H4R7MPD1TD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 67% | View |
| 100RX304.7MT78X11.5 | Rubycon | CAP ALUM 4.7UF 20% 100V RADIAL | 61% | View |
Submit your RFQ for UBT2W4R7MPD and get a quote within 24 hours.
